Bolt
T Bolt
Bolt
T Bolt
T bolts have a T-shaped head that slides into a T-slot or channel, locking against rotation while allowing position adjustment along the slot. Cyfasten supplies…
- Standard
- ASME B18.5 or custom demand
- Size
- 1/4''-1''
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Brass
- Grade
- SAE J429 Gr.2, 5, 8; ASTM A307 Gr.A; Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; A2-70, A4-70, A4-80
- Finish
- Plain, Black Oxide, Zinc Plated (Clear/Blue/Yellow/Black), H.D.G, Nickel, Chrome, PTFE, Dacromet, Geomet, Magni, Zinc Nickel, Zinteck
Description
T bolts have a T-shaped head that slides into a T-slot or channel, locking against rotation while allowing position adjustment along the slot. Cyfasten supplies them for machine tool tables, aluminum extrusion framing, and clamping fixtures.
Specifications
| Standard | ASME B18.5 or custom demand |
| Size | 1/4''-1'' |
| Material | Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade | SAE J429 Gr.2, 5, 8; ASTM A307 Gr.A; Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; A2-70, A4-70, A4-80 |
| Finish | Plain, Black Oxide, Zinc Plated (Clear/Blue/Yellow/Black), H.D.G, Nickel, Chrome, PTFE, Dacromet, Geomet, Magni, Zinc Nickel, Zinteck |

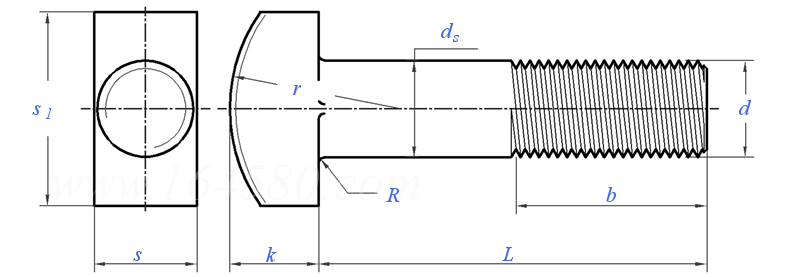

Technical Drawing
